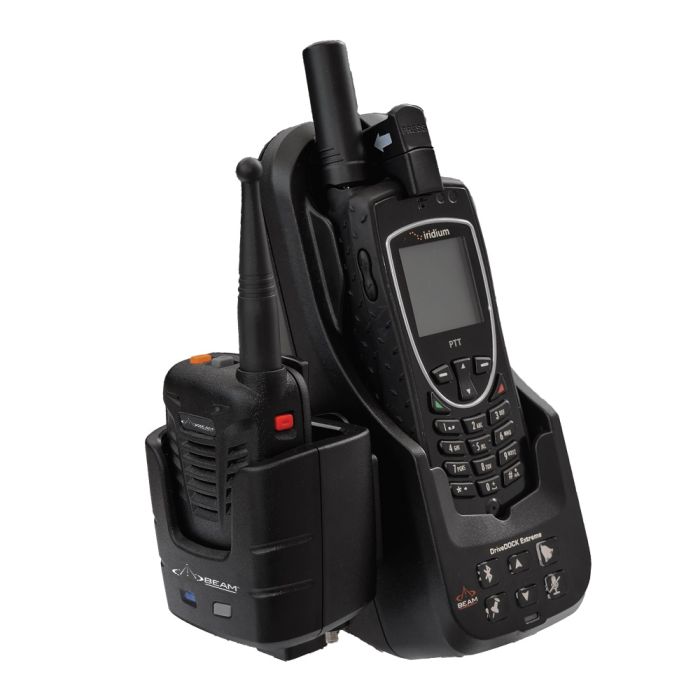

Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1A)

Name: Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1A)
Brand: BEAM
SKU: Iridium-Beam-9575-EXTRMDD-PTT-W1
Price: 1975 USD
Availability: InStock

IRIDIUM PUSH TO TALK BROCHURE (PDF)

IRIDIUM EXTREME PTT BROCHURE (PDF)

BEAM DRIVEDOCK EXTREME PTT BROCHURE (PDF)

SEE ALL DOWNLOADS

US$1,975.00

Overview

The DriveDOCK Extreme Wireless PTT Bundle is a high quality transport installation using the Iridium Extreme® PTT service. This combination extends the power of the Extreme PTT Device to the palm of your hand, whether in or out of a vehicle.

BRAND:

BEAM

PART #:

EXTRMDD-PTT-W1A

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 2-3 BUSINESS DAYS

Product Code:

Iridium-Beam-9575-EXTRMDD-PTT-W1

Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1)
The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Extreme Docking Station. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.

DriveDOCK Extreme Interfaces

Privacy Handset (Line In/Out)	4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle.
External Speaker and Microphone	One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
Data Port (USB)	USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile.
Alarm (Alert) Loop	Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output.
Horn Output / Audio System Mute	Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability.
Power Cable	4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc
LEDs/Buttons	Bluetooth, Ringer, Track, Mute, Up & Down

More Information
PRODUCT TYPE	SATELLITE PHONE
USE TYPE	VEHICULAR
BRAND	BEAM
PART #	EXTRMDD-PTT-W1A
NETWORK	IRIDIUM
USAGE AREA	100% GLOBAL
SERVICE	IRIDIUM PTT
FREQUENCY	L BAND (1-2 GHz)
ACCESSORY TYPE	DOCKING STATION
COMPATIBLE WITH	IRIDIUM PTT

• Durable and reliable mic/speaker handset
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories

Iridium Global Coverage Map

Iridium delivers essential communications services to and from remote areas where no other form of communication is available. Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.

At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
