Iridium Active Antenna (AD511-2-1)
AED6,620.60
PART #:
AD511-2-1
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Iridium-AD511-Active-Antena

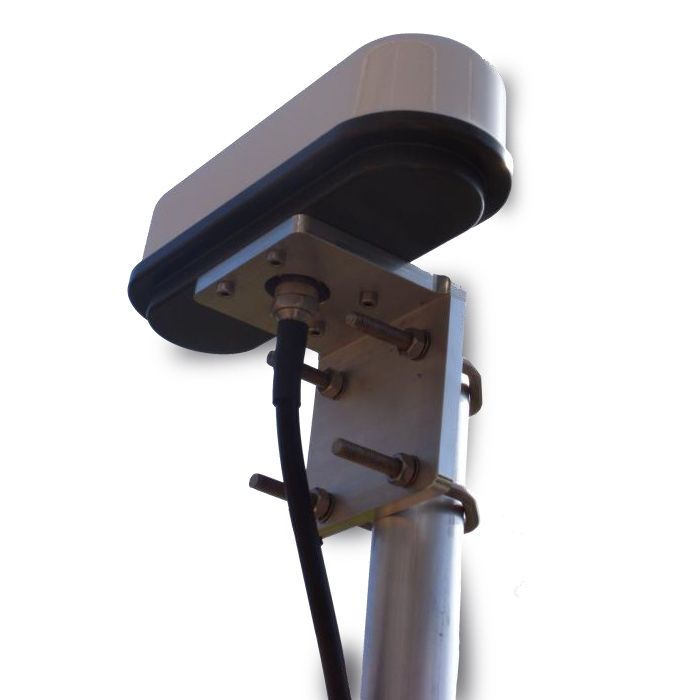

Iridium Active Antenna (AD511)
The Iridium Active Antenna is designed for use where long cable runs are required, far beyond the distances achievable with a standard passive device.
The AD511 is NOT supplied with a flexible 40m RG213U coax cable, however bespoke lengths of up to 120m are possible, subject to coax cable type.
The AD511 provides superior performance with all Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion. The unit is designed for free air mounting and no ground plane is required.
The AD511 Active Antenna uses the Iridium satellite network.
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | FIXED, MARITIME |
| PART # | AD511-2-1 |
| NETWORK | IRIDIUM |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE |
| FEATURES | ACTIVE |
| FREQUENCY | L BAND (1-2 GHz) |
| ACCESSORY TYPE | ANTENNA |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM 9500 |
