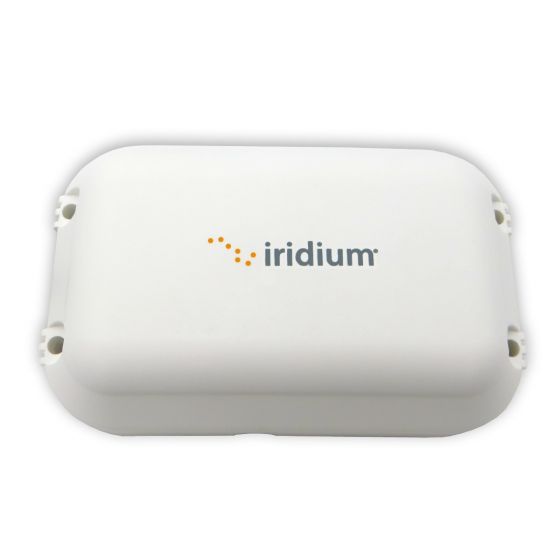

Iridium Edge™

AED2,080.44
Overview

Iridium Edge® is a cost-effective satellite IoT communications device that can be rapidly deployed and complements terrestrial-based solutions to create worldwide connectivity for fleet management, telematics, safety and other remote monitoring applications.

BRAND:
IRIDIUM
MODEL:
EDGE
PART #:
EDGE1601
ORIGIN:
Thailand
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Iridium-Edge-SBD-Modem

Iridium Edge™

Enable your customers to leverage their existing terrestrial-based solutions for fleet management, telematics, safety and other remote monitoring applications through Iridium Edge™, an off-the-shelf, reliable satellite communications device that complements existing cellular solutions to create dual-mode connectivity for the most remote and inaccessible areas of the world.

Fast time-to-market is a critical component in today’s highly competitive communications environment. Iridium Edge™ is a turnkey, environmentally sealed, rugged hardware device that reduces the cost and complications associated with hardware development, manufacture and certification of satellite-specific terminal.

Key Features of Iridium Edge™:

  • Hardware-ready device for simple, low risk integration
  • Low-cost device for affordable customer adoption
  • Satellite add-on for truly global coverage
  • Off-the-shelf availability for quick time-to-market
  • Robust power supply for industrial installations
  • Environmentally sealed for harsh conditions
  • 180° line of sight for compromised, partially blocked locations
  • Iridium Short Burst Data℠ (SBD℠) modem for Iridium's superior network advantages

Key Markets:

  • Fleet Management
  • Remote Monitoring
  • SCADA
  • Asset Tracking
  • Maritime
More Information
PRODUCT TYPESATELLITE M2M
USE TYPEFIXED, MARITIME, VEHICULAR
BRANDIRIDIUM
MODELEDGE
PART #EDGE1601
NETWORKIRIDIUM
CONSTELLATION66 SATELLITES
USAGE AREA100% GLOBAL
SERVICEIRIDIUM SBD
LENGTH130 mm (5.11")
WIDTH80 mm (3.15")
DEPTH30 mm (1.18")
WEIGHT330 grams (11.64 oz)
FREQUENCYL BAND (1-2 GHz)
APPLICATIONSASSET TRACKING, ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, REMOTE AUTOMATION & CONTROL
INGRESS PROTECTIONIP 67
OPERATING TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
STORAGE TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
CERTIFICATIONSCE COMPLIANCE, FCC

Network:

  • Message Size: 240 bytes (Receive), 370 bytes (Transmit)
  • Frequency: 1616 – 1626.5 MHz

Mechanical:

  • Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
  • Ingress Protection: IP 67
  • Side and bottom cable exits

Environmental:

  • Operating temperature range: -40C to 85C
  • Storage temperature range: -40C to 85C

Interfaces:

  • RS232 AT command interface
  • On/Off control lines

Power:

    • Power Supply ( 9-32V), SAE J1455 Load dump protected
    • Reverse Polarity Protection
    • Maximum Power: 1.6W  (peak for short transmit burst)
    • Low Power Modes: < 100uA



Certifications:

  • Iridium® satellite network certification
  • FCC, IC, CE, Australia approvals
  • RoHS compliant

Iridium Global Coverage Map


Iridium Global Coverage Map

Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.

BROCHURES
pdf
 (Size: 2.7 MB)
pdf
 (Size: 2.2 MB)
pdf
 (Size: 158.6 KB)
USER MANUALS
pdf
 (Size: 1.2 MB)
pdf
 (Size: 1.5 MB)
QUICK START
